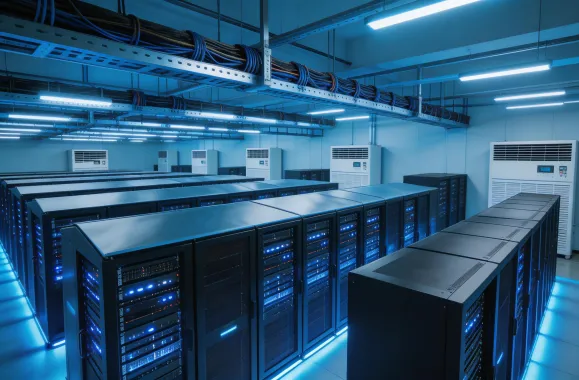

Data Centers
Hyperscale and colocation facilities demand 99.999% uptime with increasing power density per rack. TraneThermal delivers chilled water systems achieving PUE below 1.2, with N+1 redundancy and free cooling economizers for temperate climates.
Project Reference: Southeast Asia Colocation Facility
A 15 MW colocation data center in Singapore required chilled water cooling capable of maintaining 22 degrees C supply air temperature at 95% relative humidity ambient conditions. TraneThermal deployed 6 x 750 TR water-cooled centrifugal chillers with variable-speed drives in an N+1 configuration, integrated with a waterside economizer for the 800 hours per year when wet-bulb temperature drops below 18 degrees C. The completed system achieved PUE 1.18, delivering 12% lower energy consumption than the client's baseline design using constant-speed chillers.

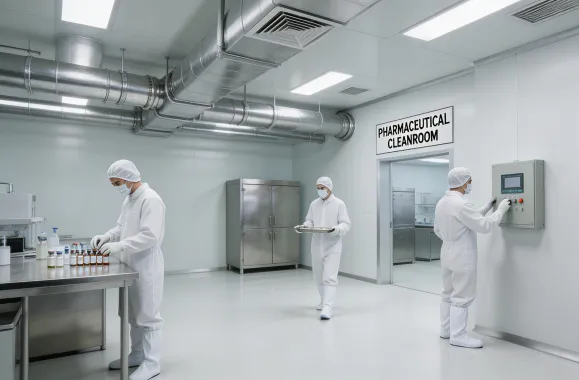

Pharmaceutical & Life Sciences
GMP-compliant HVAC systems maintaining ISO Class 5-8 cleanroom conditions. Our solutions address stringent temperature control within plus/minus 0.5 degrees C, humidity control, and positive/negative pressure cascades required for API manufacturing and sterile fill facilities.
- FDA 21 CFR Part 11 compliant monitoring and documentation
- HEPA-integrated air handling units with heat recovery
- Validated temperature mapping and IQ/OQ/PQ support
Project Reference: European API Manufacturing Facility
A pharmaceutical company in Basel, Switzerland required HVAC upgrades for a 4,200 m2 cleanroom suite producing injectable APIs under EU GMP Annex 1 conditions. TraneThermal supplied four air handling units with HEPA filtration and heat recovery wheels, plus two 200 TR water-cooled scroll chillers providing chilled water at 6/12 degrees C. The system maintained ISO Class 7 conditions with temperature stability within plus/minus 0.3 degrees C across all zones. Energy consumption decreased 22% compared to the previous constant-volume system through variable air volume controls and chiller sequencing optimization.

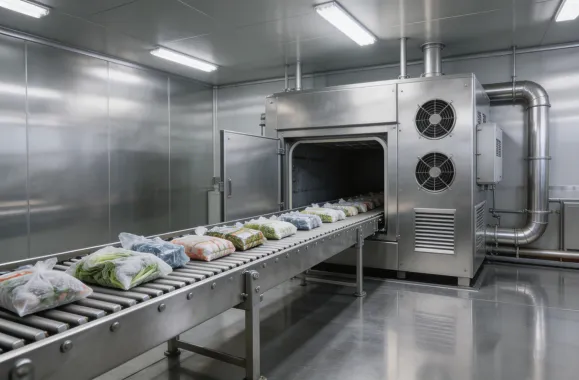

Food & Beverage Processing
From dairy pasteurization to blast freezing, our process cooling systems maintain HACCP-compliant temperature chains. Ammonia/CO2 cascade systems deliver maximum efficiency for large cold stores, while glycol loop systems serve distributed process cooling needs.
- HACCP-compatible equipment design with stainless steel construction
- Blast freezing from +20 degrees C to -35 degrees C in under 4 hours
- Ammonia systems with leak detection and emergency ventilation
Project Reference: Midwest Frozen Food Processing Plant
A frozen food manufacturer in Iowa required a new blast freezing line capable of reducing product core temperature from +20 degrees C to -18 degrees C within 3 hours for a throughput of 8 tons per hour. TraneThermal designed an ammonia/CO2 cascade refrigeration system with the low-stage CO2 circuit operating at -45 degrees C evaporating temperature. The cascade design achieved a system COP of 1.8 at the design condition, 15% higher than a comparable single-stage ammonia system, while reducing total ammonia charge from 4,500 kg to 800 kg by confining ammonia to the high-stage circuit in the machine room.

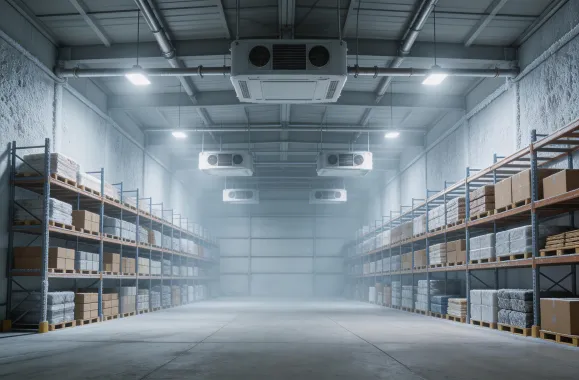

Cold Chain & Logistics
Temperature-controlled warehouses and distribution centers require reliable refrigeration with continuous monitoring. Our cold storage systems range from +2 degrees C fresh goods storage to -40 degrees C deep freeze, with real-time temperature logging for regulatory compliance.
Request Cold Chain Quote

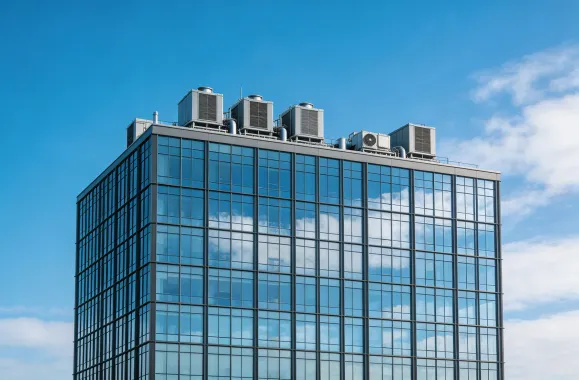

Commercial Buildings
Variable primary flow chilled water plants, VRF systems, and integrated BMS for office towers, hospitals, hotels, and retail complexes. Our designs optimize occupant comfort while minimizing lifecycle energy cost through intelligent controls and heat recovery.
Contact Commercial Team

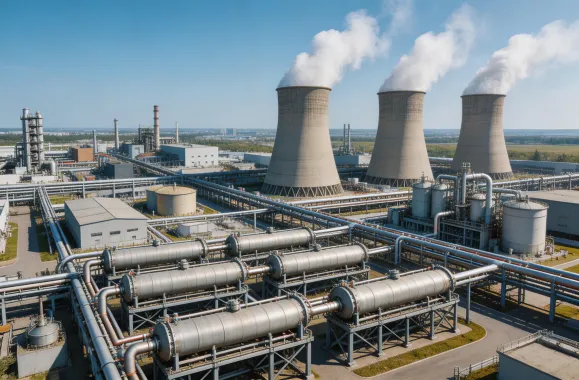

Industrial Processing
Process cooling for chemical, petrochemical, mining, and manufacturing operations. Shell-and-tube heat exchangers rated to 25 bar, ATEX-compliant equipment for hazardous areas, and glycol loop systems for corrosive environments.
Contact Industrial Engineering
